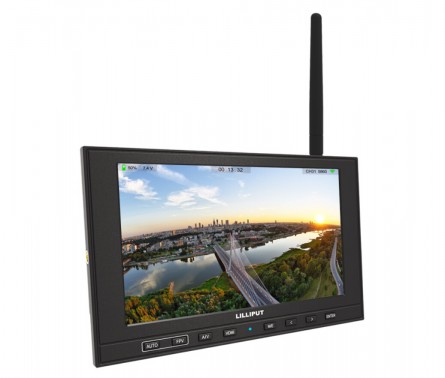

Lilliput 339/W 7 Inch IPS LED FPV Monitor For Aerial & Outdoor Photography.,1280×800,800:1,Built-in 2600mAh Battery,HDMI AV Input,Build-in Speaker

sale

Get it before it's gone!


  • Discount 21.34%
  • You Save $62.42
  • Bought 0
Hurry, there are only 10 items left!

Write Your Own Review

30 Days Money Back + 1 Year Free Repair(For Monitors)

Availability: In stock(Shipping within 48 hours)

  • Worldwide Free Shipping

  • Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Regular Price: $292.54

Special Price $230.11

Quick Overview

Lilliput 339/W 7 Inch IPS LED FPV Monitor For Aerial & Outdoor Photography.,1280×800,800:1,Built-in 2600mAh Battery,HDMI AV Input,Build-in Speaker

More Views

Additional Information

delivery

Worldwide Free Shipping

notax

Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Details

Specific Monitor by LILLIPUT for Flying Camera System.
Application for Aerial & Outdoor Photography.
Strongly recommend for aerial enthusiast & professional photographer.

339/DW (with dual 5.8Ghz receivers, which cover 4 bands and total 32 channels, Channel auto searching): Learn more...
339/W (with single 5.8Ghz receiver, which cover 4 bands and total 32 channels, Channel auto searching)


Features:
Excellent Display & Design

it features attractive IPS panels, which with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast that providing excellent viewing experience.



Channel Auto Searching

It supports 32-channel totally, press "AUTO" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.



PiP Mode(339/DW only)

339/DW owns dual antennas, which can receive two different video signal channels, and technically overlayed the video signals directly on the same monitor.  Also multiple Picture-in-Picture(PiP) modes can be selected.



3-hour Timer & Alert Indicator

Creatively integrated timer function to control the flight time and avoid of flight accident when operating the UAV. Timer supports up to 3-hour countdown, and it will alert when 1 minute left.



Built-in Battery & Battery Level

Built-in 2600mAh battery, support up to 3-4 hours working time, and providing battery level indicator.



Wireless signal sensitivity indicator

Real-time display the 5.8GHz wireless signal sensitivity of main image. It's more convenient for users to monitor the video signal status of UAV.



5.8GHz Wireless AV Receiver

  • Built-in AV receiver support PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
  • Simulation of composite video AV inputs, aerial camera connection.
  • 5.8Ghz frequency 4 Bands and total 32 channels.
  • 100 to 2000 meters wireless distance.
  • Built-in 2600mAh high capacity rechargeable battery, make power cables free.
  • Snow screen, no more "blue" screen.
Wireless Receiver Channel (Mhz)

CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band1
5865
5845
5825
5805
5785
5765
5745
5725
Band2
5733
5752
5771
5790
5809
5828
5847
5866
Band3
5705
5685
5665
5645
5885
5905
5925
5945
Band4
5740
5760
5780
5800
5820
5840
5860
5880
DISPLAY
  Panel   7" IPS, LED backlit
  Physical Resolution   1280×800
  Aspect Ratio   16:9
  Brightness   400cd/㎡
  Contrast   800:1
  Viewing Angle   178°/178°(H/V)
INPUT
  Wireless 5.8GHz AV   1 (339/W), 2 (339/DW)
  HDMI   1
  AV   1
OUTPUT
  AV   1
AUDIO
  Speaker   1
  Earphone   1
POWER
  Current   1300mA
  Input Voltage   DC 7-24V
  Battery   Built-in 2600mAh battery
  Battery Plate (optional)   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤18W
ENVIRONMENT
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION
  Dimension(LWD)   185×126×30 mm
  Color   White/Black
  Weight   385g
HDMI Connect DVI Cable For Lilliput HDMI Monitor 619 Series: 619A,619AT HDMI Connect DVI Cable For Lilliput HDMI Monitor 619 Series: 619A,619AT 5.8GHz Wireless AV Receiver For Lilliput Monitor 664 Series,329/W Series
AV output cable AV input cable 5.8GHz Antenna
HDMI Connect DVI Cable For Lilliput HDMI Monitor 619 Series: 619A,619AT

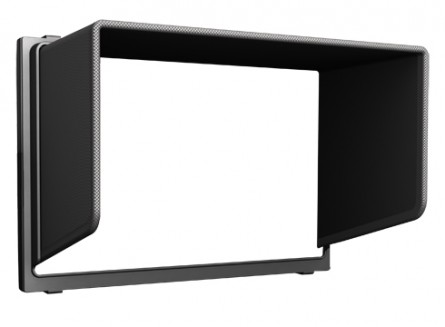

Folding Sun Shade Lilliput Monitor TM-1018 Series



12V DC adapter

2600mAh-7.4V Li-ion battery Foldable Sunshade 12V DC adapter
Manual Shoe Mount HDMI A/C cable
Manual Shoe Mount (optional) HDMI A/C cable (optional)
HDMI Connect DVI Cable For Lilliput HDMI Monitor 619 Series: 619A,619AT HDMI Connect DVI Cable For Lilliput HDMI Monitor 619 Series: 619A,619AT 5.8GHz Omnidirectional Antenna For Lilliput Monitor 329/W Series
FPV double-rod bracket (optional) FPV single-rod bracket (optional) 5.8GHz omnidirectional antenna (optional)
VESA folding bracket(optional) Battery Plate

VESA battery bracket(optional) Battery Plate(optional)
