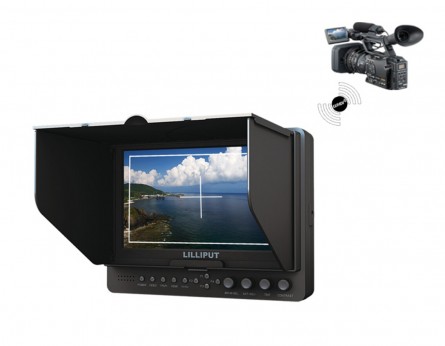

Lilliput 7 " Wireless HDMI Monitor 665/O/WH (Wireless HDMI input & HDMI output)

Write Your Own Review

30 Days Money Back + 1 Year Free Repair(For Monitors)

Availability: In stock(Shipping within 48 hours)

  • Worldwide Free Shipping

  • Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Regular Price: $752.76

Special Price $720.94

Quick Overview

Lilliput 7 " Wireless HDMI Monitor 665/O/WH (Wireless HDMI input & HDMI output)

More Views

Additional Information

delivery

Worldwide Free Shipping

notax

Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Details

Note: 665/P/WH     (with advanced functions, wireless HDMI input): Learn more...
           665/O/P/WH (with advanced functions, wireless HDMI input & HDMI output): Learn more...
           665/WH         (Wireless HDMI input): Learn more...
           665/O/WH     (Wireless HDMI input & HDMI output)



PTP & PTMP Transmission:

  • PTP: Point-to-point (standard),
  • PTMP: Point-to-multipoint (optional)
    *One transmitter can work with one receiver or multi-receivers.



PTMP                                                                            PTP


Peaking Filter:

This feature is most effective when the subject is properly exposed and contains enough contrast to be processed.






FALSE COLORS FILTER:

The False Color filter is used to aid in the setting of camera exposure, which enables proper exposure to be achieved without the use of costly, complicated external test equipment.

  • OVEREXPOSED: Overexposed objects will display as RED;
  • PROPERLY EXPOSED: Properly exposed objects will display elements of GREEN and PINK;
  • UNDEREXPOSED: Underexposed objects show as DEEP-BLUE to DARK-BLUE.



EXPOSURE (ZEBRAS):

The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.






BRIGHTNESS HISTOGRAM:

The Brightness Histogram is a quantitative tool to check the picture brightness. This feature shows the distribution of brightness in an image as a graph of brightness along the horizontal axis (Left: Dark; Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

DISPLAY
  Panel   7" LED backlit
  Physical Resolution   1024×600, support up to 1920×1080
  Aspect Ratio   16:9
  Brightness   250cd/㎡
  Contrast   800:1
  Viewing Angle   160°/150°(H/V)
INPUT
  WHDI   1
  HDMI   1
  YPbPr   3(BNC)
  VIDEO   1
  AUDIO   1
OUTPUT
  HDMI   1
  VIDEO   1
POWER
  Current   800mA
  Input Voltage   DC 7-24V(XLR)
  Battery Plate   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Power Consumption   ≤10W
ENVIRONMENT
  Operating Temperature   -20℃~60℃
  Storage Temperature   -30℃~70℃
DIMENSION
  Dimension(LWD)   194.5×150×38.5 / 158.5mm (with cover)
  Weight   560g / 720g (with cover)
VIDEO FORMAT
  WHDI(wireless HDMI)

  1080p 60/50/30/25/24Hz
  1080i 60/50Hz, 720p 60/50Hz
   576p 50Hz, 576i 50Hz
   480p 60Hz, 486i 60Hz

  HDMI   1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
  1080i 60/59.94/50Hz, 1035i 60/59.94Hz
   720p 60/59.94/50/30/29.97/25Hz
   576i 50Hz,  486i 60/59.94Hz, 480p 59.94Hz



 Li-ion battery (optional)  7  Battery plate bracket
Li-ion battery (optional) 7" sun shade Battery plate bracket
 12V DC adapter  Manual  Shoe Mount (optional)
 12V DC adapter  Manual  Shoe Mount(optional)
 HDMI A/C cable (optional)  V-mount battery plate (optional)  Battery Plate
HDMI A/C cable V-mount battery plate (optional)  Battery Plate
WHDI transmitter Anton Mount Plate (optional)
WHDI transmitter Anton Mount Plate (optional)
