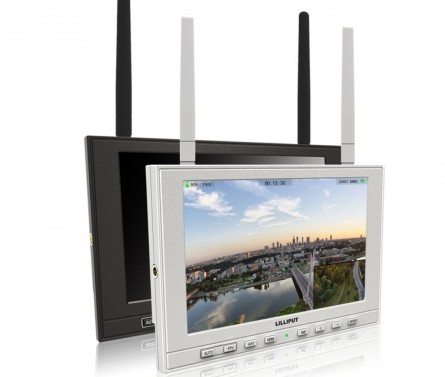

Lilliput 339/DW 7 inch IPS LED Monitor For Air FPV and outdoor photography, 1280 × 800,800:1 Built-in 2600mAh battery, HDMI AV Input, Dual 5.8Ghz Receivers

30 Days Money Back + 1 Year Free Repair(For Monitors)

Availability: In stock(Shipping within 48 hours)

  • Free shipping worldwide

  • Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Regular Price: $329.26

Special Price $268.06

* Required Fields

Quick Overview

Lilliput 339 / DW 7 inch IPS LED Monitor For Air FPV and outdoor photography, 1280 × 800,800:1 Built-in 2600mAh battery, HDMI AV Input, Dual 5.8Ghz Receivers

More Views

Additional Information

delivery

Free shipping worldwide

notax

Delivery:DHL/FEDEX/UPS/EMS(2-10 Days)

Details

Specific monitor by LILLIPUT for Flying camera system.
Aerial Photography and exterior application.
We highly recommend for Air and professional photographer amateurs.

339 / DW  (with  two  5.8GHz receivers, which cover  four bands  and a total of  32 channels ,  search Auto Channel )
339 / W  (with  single  5.8Ghz receiver,  which cover  four bands  and a total of  32 channels ,  automatic channel search ): Learn more...


Features:
excellent display & Design

it has attractive IPS panels, which with 1280x800 resolution, 178 ° wide viewing angles, high brightness and contrast with excellent viewing experience.



Auto Channel Search

It supports 32 channels completely, press the "AUTO" button to perform the automatic channel search function when aerial photography. It is much more convenient than traditional methods.



PiP mode (339 / DW only)

339 / DW has two antennas that can receive two channels of different video signals and video signals technically superimposed directly on the same monitor. Also multiple Picture-in-Picture (PiP) modes can be selected.



3:00 timer and alarm indicator

Integrated timer function creatively to control the flight time and avoid flying accident when using the UAV. Timer supports up to 3 hours countdown, and alert you when 1 minute left .



Built-in battery and Level

2600mAh built-in battery, support up to 3-4 hours of working time, and provide the battery level indicator.



Wireless signal  sensitivity indicator

Real-time display the sensitivity 5.8GHz wireless signal of the main image. It's more convenient for users to monitor the status of the video signal of the UAV.



5.8GHz Wireless AV Receiver

  • Built in support AV Receiver PAL / NTSC switch automatically, anti-black, anti-blue, anti-flash.
  • Simulation composite video inputs AV connection aerial camera.
  • 5.8Ghz frequency  bands 4 and a total of 32 channels .
  • 100-2000 meters wireless remote.
  • Built-in 2600mAh high capacity rechargeable battery, make power cables free.
  • snow screen, nor the "blue" screen.
Wireless receiver channels (Mhz)

CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band1
5865
5845
5825
5805
5785
5765
5745
5725
Band2
5733
5752
5771
5790
5809
5828
5847
5866
Band3
5705
5685
5665
5645
5885
5905
5925
5945
Band4
5740
5760
5780
5800
5820
5840
5860
5880
DISPLAY
  Panel   7" IPS LED-backlit
  Physical resolution   1280 × 800
  Aspect Ratio   16: 9
  Brightness   400cd / ㎡
  Contraster   800: 1
  Viewing Angle   178 ° / 178 ° (H / V)
ENTRANCE
  5.8GHz Wireless AV   2 (339 / DW) , 1 (339 / W)
  HDMI   1
  OF   1
EXIT
  OF   1
AUDIO
  Speaker   1
  Earphone   1
POWER
  Current   1300mA
  Input voltage   DC 7-24
  Battery   Built-in Battery 2600mAh
  Battery plate (optional)   V-mount / Anton Bauer mount /
  F970 / QM91D / DU21 / LP-E6
  Consumption   ≤18W
ENVIRONMENT
  Operating temperature   -20 ℃ ~ 60 ℃
  Storage temperature   -30 ℃ ~ 70 ℃
DIMENSION
  Dimension (LWD)   185 × 126 × 30 mm
  Color   White / Black
  Weight   385g
HDMI Connect HDMI Cable DVI Monitor To Lilliput 619 Series: 619A, 619AT HDMI Connect HDMI Cable DVI Monitor To Lilliput 619 Series: 619A, 619AT 5.8GHz Wireless AV Receiver Monitor To Lilliput 664 Series, 329 / W Series
AV output cable AV input cable 5.8GHz antenna
HDMI Connect HDMI Cable DVI Monitor To Lilliput 619 Series: 619A, 619AT
Folding Sun Shade Lilliput monitor TM-1018 Series



12V DC adapter

7.4V 2600mAh Li-ion battery Folding Umbrella 12V DC adapter
Manuel Shoe Mount HDMI / C
Manuel Mount shoes (optional) HDMI A/C Cable (optional)
HDMI Connect HDMI Cable DVI Monitor To Lilliput 619 Series: 619A, 619AT HDMI Connect HDMI Cable DVI Monitor To Lilliput 619 Series: 619A, 619AT 5.8 GHz omnidirectional antenna To monitor Lilliput 329 / W Series
FPV double rod bracket (optional) FPV carrier single stem (optional) 5.8GHz omnidirectional antenna (optional)
VESA folding (optional) Battery plate
VESA battery holder (optional) Battery plate (optional)
  1. Useful monitor Review by Simon
    Price
    Quality
    Value

    The screen is nice and the functionality is good. the signal is very strong. (Posted on 3/25/2015)
